Glass

6 minute read

#	Name	Type	Size	Description	Isolation Glasses	Manual Glass Input
1	GlassID	Long Integer	4	PRIMARY KEY
2	LK_SupplierId	Long Integer	4
3	LK_DiscountId	Long Integer	4
4	InsertionId	Long Integer	4	FOREIGN KEY refers to Insertions.InsertionID
5	Name	Text	255	Glass configuration + name	Configuration + Name
6	Description	Text	255	Glass description
7	VariantDescription	Text	255
8	Comment1	Text	255
9	Comment2	Text	255
10	NameShort	Text	255	Glass name	Name
11	xGUID	Text	255
12	HashCode	Text	255
13	xSashGUID	Text	255
14	Middle	Text	255	Filled if special glass in the middle
15	Configuration	Text	255		Calculated from Thickness
16	Info1	Text	255	Description 1	Description 1
17	Info2	Text	255	Description 2	Description 2
18	AdditionalInformation	Text	255
19	InfoDrawing	Text	255		Description on Position Drawing
20	Price	Double	8		****
21	PriceGross	Double	8
22	SurchargePc	Double	8
23	SurchargeKG	Double	8
24	SurchargeM2	Double	8
25	SurchargePerc	Double	8
26	ArtNo	Text	255
27	InsertionNo	Long Integer	4
28	InsertionSubno	Long Integer	4
29	Origin	Text	255
30	WidthFilling_Unit	Text	255
31	AreaOffer	Text	255	For example: Glass, Panels, …
32	Width	Double	8	Width in meter
33	Width_Output	Double	8	Width in your LogiKal unit
34	Width_Unit	Text	255	Width output unit
35	Height	Double	8	Height in meter
36	Height_Output	Double	8	Height in your LogiKal unit
37	Height_Unit	Text	255	Height output unit
38	WidthFilling	Double	8
39	WidthFilling_Output	Double	8
40	HeightFilling	Double	8
41	HeightFilling_Output	Double	8
42	HeightFilling_Unit	Text	255
43	WidthGridPrices	Double	8	width of one glass (in a wall element)
44	WidthGridPrices_Output	Double	8
45	WidthGridPrices_Unit	Text	255		****	****
46	HeightGridPrices	Double	8	Height of one glass (in a wall element)
47	HeightGridPrices_Output	Double	8
48	HeightGridPrices_Unit	Text	255
49	WidthEstimation	Double	8	Calculated width in meter
50	WidthEstimation_Output	Double	8	Calculated width in your LogiKal unit
51	WidthEstimation_Unit	Text	255	Calculated width output unit
52	HeightEstimation	Double	8	Calculated height in meter
53	HeightEstimation_Output	Double	8	Calculated height in your LogiKal unit
54	HeightEstimation_Unit	Text	255	Calculated height output unit
55	WidthStepInside	Double	8
56	WidthStepInside_Output	Double	8
57	WidthStepInside_Unit	Text	255
58	HeightStepInside	Double	8
59	HeightStepInside_Output	Double	8
60	HeightStepInside_Unit	Text	255
61	WidthStepOutside	Double	8
62	WidthStepOutside_Output	Double	8
63	WidthStepOutside_Unit	Text	255
64	HeightStepOutside	Double	8
65	HeightStepOutside_Output	Double	8
66	HeightStepOutside_Unit	Text	255
67	Strength	Double	8	Glass strength in mm
68	Strength_Output	Double	8	Glass strength in your LogiKal unit
69	Strength_Unit	Text	255	Glass strength output unit
70	ActualStrength	Double	8	Total glass strength in mm
71	ActualStrength_Output	Double	8	Total glass strength in your LogiKal unit
72	ActualStrength_Unit	Text	255	Total glass strength output unit
73	SideInLeft	Double	8
74	SideInLeft_Output	Double	8
75	SideInLeft_Unit	Text	255
76	SideInRight	Double	8
77	SideInRight_Output	Double	8
78	SideInRight_Unit	Text	255
79	SideInTop	Double	8
80	SideInTop_Output	Double	8
81	SideInTop_Unit	Text	255
82	SideInBottom	Double	8
83	SideInBottom_Output	Double	8
84	SideInBottom_Unit	Text	255
85	AreaQM	Double	8	Area in m2
86	AreaQM_Output	Double	8	Area in your LogiKal unit
87	AreaQM_Unit	Text	255	Area output unit
88	AreaEstimationQM	Double	8	Calculated area in m2
89	AreaEstimationQM_Output	Double	8	Calculated area in your LogiKal unit
90	AreaEstimationQM_Unit	Text	255	Calculated area output unit
91	VisibleArea	Double	8	Visible area in m2
92	VisibleArea_Output	Double	8	Visible area in your LogiKal unit
93	VisibleArea_Unit	Text	255	Visible area output unit
94	Perimeter	Double	8	Perimeter in meter
95	Perimeter_Output	Double	8	Perimeter in your LogiKal unit
96	Perimeter_Unit	Text	255	Perimeter output unit
97	PerimeterStep	Double	8
98	PerimeterStep_Output	Double	8
99	PerimeterStep_Unit	Text	255
100	ModelType	Long Integer	4	ModelType
101	GlassType	Text	255	GlassType
102	Amount	Long Integer	4	Amount
103	FieldNo	Long Integer	4
104	Inside	Text	255	Filled if special glass inside
105	Outside	Text	255	Filled if special glass outside
106	UValue	Double	8	UValue in W/m2K	Ug Value
107	UValue_Output	Double	8	UValue in your LogiKal unit
108	UValue_Unit	Text	255	UValue output unit
109	PsiValue	Double	8	PSI value in W/mK	‘psi’-Value
110	PsiValue_Output	Double	8	PSI value in your LogiKal unit
111	PsiValue_Unit	Text	255	PSI value output unit
112	Weight	Double	8	Weight in kilogram
113	Weight_Output	Double	8	Weight in your LogiKal unit
114	Weight_Unit	Text	255	Weight output unit
115	SpecialAllowed	Bool	1
116	HasGeorgianBars	Bool	1	0 = Glass without georgian bars 1 = Glass with georgian bars
117	MinSpacerGap	Double	8
118	MaxSpacerGap	Double	8
119	SpacerGap	Double	8	Spacer gap in mm
120	SpacerGap_Output	Double	8	Spacer gap in your LogiKal unit
121	SpacerGap_Unit	Text	255	Spacer gap output unit
122	StrengthI	Double	8	Glass strength inside in mm	Pane Thickness, Inside
123	StrengthI_Output	Double	8	Glass strength inside in your LogiKal unit
124	StrengthI_Unit	Text	255	Glass strength inside output unit
125	StrengthM	Double	8	Glass strength middle in mm	Pane Thickness, Centre
126	StrengthM_Output	Double	8	Glass strength middle in your LogiKal unit
127	StrengthM_Unit	Text	255	Glass strength middle output unit
128	SpacerGap2	Double	8	Second spacer gap in mm
129	SpacerGap2_Output	Double	8	Second spacer gap in your LogiKal unit
130	SpacerGap2_Unit	Text	255	Second spacer gap output unit
131	StrengthO	Double	8	Glass strength outside in mm	Pane Thickness, Outside
132	StrengthO_Output	Double	8	Glass strength outside in your LogiKal unit
133	StrengthO_Unit	Text	255	Glass strength outside output unit
134	Picture9_File	Text	255	Path and filename of sharped glass drawing 1
135	Picture9_WidthMM	Double	8	Sharped glass drawing 1 width in mm
136	Picture9_HeightMM	Double	8	Sharped glass drawing 1 height in mm
137	Picture9_Scale	Double	8	1 divided by Picture9_Scale = scale
138	Picture9_Inside	Bool	1	0 = Sharped glass drawing 1 is outside 1 = Sharped glass drawing 1 is inside
139	Picture9_CompCad	OLE-Objekt	-
140	Picture10_File	Text	255	Path and filename of sharped glass drawing 2
141	Picture10_WidthMM	Double	8	Sharped glass drawing 2 width in mm
142	Picture10_HeightMM	Double	8	Sharped glass drawing 2 height in mm
143	Picture10_Scale	Double	8	1 divided by Picture10_Scale = scale
144	Picture10_Inside	Bool	1	0 = Sharped glass drawing 2 is outside 1 = Sharped glass drawing 2 is inside
145	Picture10_CompCad	OLE-Objekt	-
146	StepGlasPicture_File	Text	255
147	StepGlasPicture_WidthMM	Double	8
148	StepGlasPicture_HeightMM	Double	8
149	StepGlasPicture_Scale	Double	8
150	StepGlasPicture_Inside	Bool	1
151	StepGlasPicture_CompCad	OLE-Objekt	-
152	InnerPanelColor	Text	255
153	OuterPanelColor	Text	255
154	RatedAcousticReductionIndex	Double	8
155	RatedAcousticReductionIndexC	Long Integer	4
156	RatedAcousticReductionIndexCtr	Long Integer	4
157	TotalEnergyTransmittance	Double	8
158	SolarFactor	Double	8
159	TypeOfSpacer	Text	255	Spacer type description	Type of Spacer
160	TypeOfSpacerEnum	Long Integer	4	TypeOfSpacerEnum
161	Productgroup	Text	255		Product Group
162	ShapedGlassDrawing	Text	255
163	ProcessingPointType	Long Integer	4	ProcessingPointType
164	OfferText	Text	255
165	PictureDoorFilling_File
166	PictureDoorFilling_WidthMM
167	PictureDoorFilling_HeightMM
168	PictureDoorFilling_Scale
169	PictureDoorFilling_Inside
170	PictureDoorFilling_CompCad

Glass

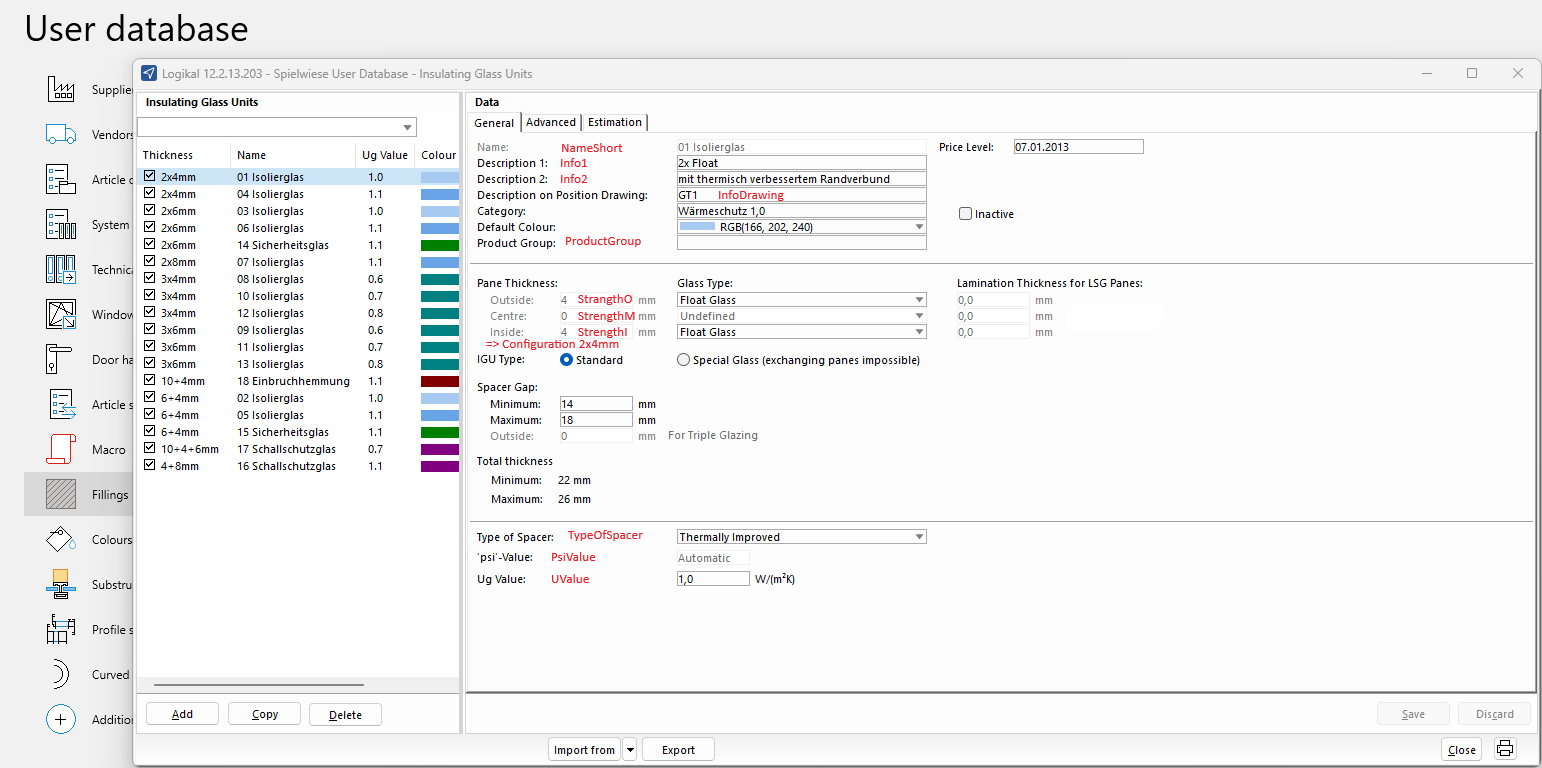

Isolation Glasses #
